P&S 360 Development and Evaluation Kit
Discover how to make the best of our P&S360 technology and products with our Development and Evaluation Kit.
This comprehensive solution is designed to meet the demands of engineers, across various industries. Our kit directly allow you to benefit from our technology advantages such as precision, reliability, and flexibility, making it the ideal choice for applications ranging from pharmaceutical research to industrial automation.
This kit can be used as a first evaluation and prototyping stage or directly as a standalone device for integration or use in an existing device or application.

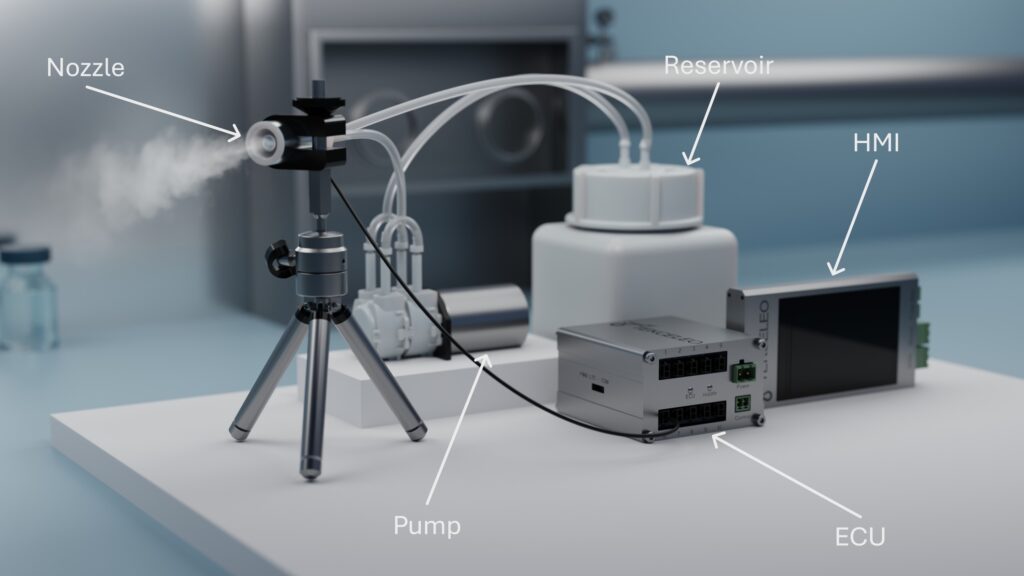

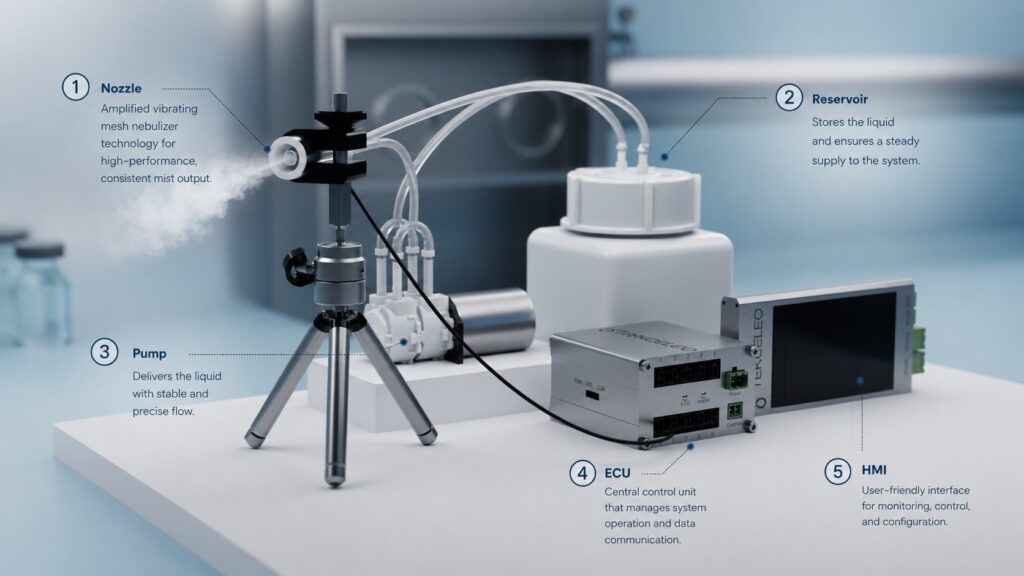

List of components of our Standard Development and Evaluation Kit
Nozzle
Designed for optimal liquid circulation, it ensures consistent aerosol generation even in continuous use scenarios.
The nozzle's compact and lightweight design makes it easy to integrate into various devices and systems. With a tested lifespan of over continuous 10,000 hours with RO water, our nozzles guarantee long-lasting performance and reliability.
ECU (Electronic Control Unit)
HMI (Human-Machine Interface)
Fluidic System
Discover our Main Applications
Get a Quotation in less than 24 hours
Tekceleo’s Micronice© technology offers numerous advantages over traditional aerosol technology, including high precision, reliability, and efficiency.
Contact us today to learn more about the P&S 360 Development Kit and how it can benefit your specific application. Our team of experts is here to support you every step of the way, from prototyping to full-scale production. Let us help you to achieve your goals.
Any quotation request will be treated in less than 24 hours. Let us talk about your project, requests and development !
Evaluation and development kit are usually shipped between 2 to 10 days depending on the demand.
Prototype and Develop Faster
The P&S 360 Development Kit is an invaluable tool for the prototyping phase, enabling engineers to test and validate their designs before full-scale production. The kit’s modular and scalable design allows for rapid iteration and optimization of aerosol generation processes, ensuring that your products meet the highest standards of quality and performance.
At Tekceleo, we understand that every application has unique requirements. That’s why we offer engineering services to support sub-system or complete system development, tailored to your specific needs. Our team of experts can provide customized solutions, from initial concept development to final integration, ensuring seamless and efficient operation. Whether you need a sub-system or a complete turnkey solution, our engineering services can help you achieve your goals.
Discover some of the Industries working with us
Medical
Pharma
Industrial Automation
Aerospace
Highlights of Micronice Amplified Mesh Nebulizer
High precision in flowrate control (up to 10µL.min steps)
Up to pharma and medical standards
Very high efficiency (<2W per nozzle)
High reliability (>5 000 hours)
High repeatability of process
No dead volume in operation
Wide liquid compatibility
Easy to control and to integrate in your automated process
No pressure nor heating to handle
Technical Characteristics of our Mesh Nebulizers
Range of Droplet Sizes
Amplified Vibrating Mesh technology allows to play on different droplet sizes
05 µm droplet size
Nominal flowrate : 0,8 ml/min
08 µm droplet size
Nominal flowrate : 3 ml/min
12 µm droplet size
Nominal flowrate : 4,5 ml/min
20 µm droplet size
Nominal flowrate : 8 ml/min
50 µm droplet size
Nominal flowrate : 35 ml/min
Mechanical Characteristics
Our nozzles are compact and easy to integrate in any devices
Light weight : 40 grams
Materials
Metallic parts : SS316L and SS304 / Others: HDPE, pharma grade silicon
Diameter : 20 mm
Length
P&S T45 : 70 mm / P&S 360 : 56,5 mm
Long lifespan
Tested lifespan with RO water : >10 000 hours
Electronics and control
Our technology is electronically native and easy to control
Between 2 to 3 W per Nozzles
One Electronic controller can control up to 10 nebulizers
ECU available from x1 control to x10 control
Flowrate control by 1% increment with PWM signals
PWM interface 3.3V on BNC connector of ECU
Easy to integrate with your own PLC
12V or 24 V entry, contact us to know more about integration with PLC
Fluidic
Systems
Needed fluidic systems depend on the design choosen : T45 or 360
P&S T45 Design : 10 ml integrated tank
10 ml integrated tank / Gravity-fed design that can only sustain nebulization up to 45° from the ground
P&S 360 Design
External reservoir > 500 mL Circulating fluidic system with peristaltic pump Compatible tube : 3mmx5mm
Pressure characteristics
No pressure in the fluidic system Max pressure to be put on the mesh : 0,1 bar
Temperature range
No need to heat the system. Temperature range from -20°C to 80°C for standard version. High temperature version on demand.
Some Examples and Applications
Liquid Aerosol Generator for microbiological studies : precise spraying of microorganisms, samples testing...
Decontamination : precise and repeatable aerosolization of H2O2 for automated decontamination of equipments such as BSC, isolators, etc.
Relative Humidity control : closed loop humidity control, with automated and precise spraying to remain close to saturation without condensation.
Food Preservation : precise humidifcation of fresh food products to avoid loss and ensure efficient conservation over time.
Aeroponics and Controlled Environment Agriculture : precise relative humidity control, as well as spraying nutrients onto the roots of plants.
Precise Coating for industry : automated aerosolization of coating liquid for 3D printing processes, microelectronics, textile industry...
